1993 GS300 Drag Car
Project Drag GS300
Currently in progress
Click here for updates - latest update - 12/07/07

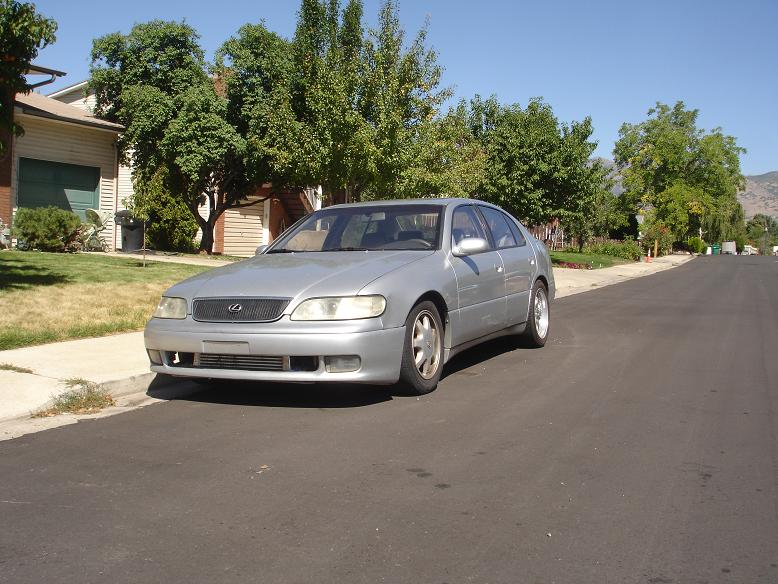

The car is a 1993 Alpine Silver Lexus GS300(soon to be badged Toyota Aristo). I purchased in April of 2005, and 6 months later in the car was turbocharged.
Due to a faulty radiator the engine blew a head gasket and the car sat for over 2 years. It has now been resurrected and will be my greatest build
and achievment yet.

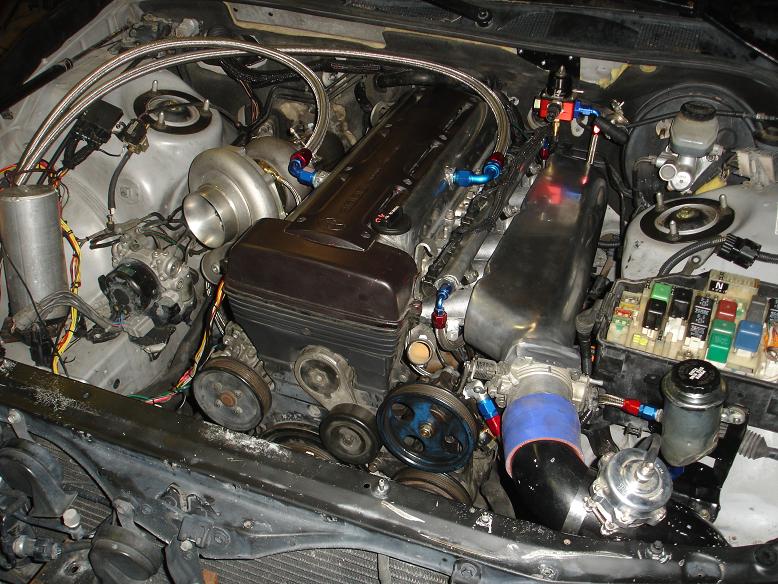

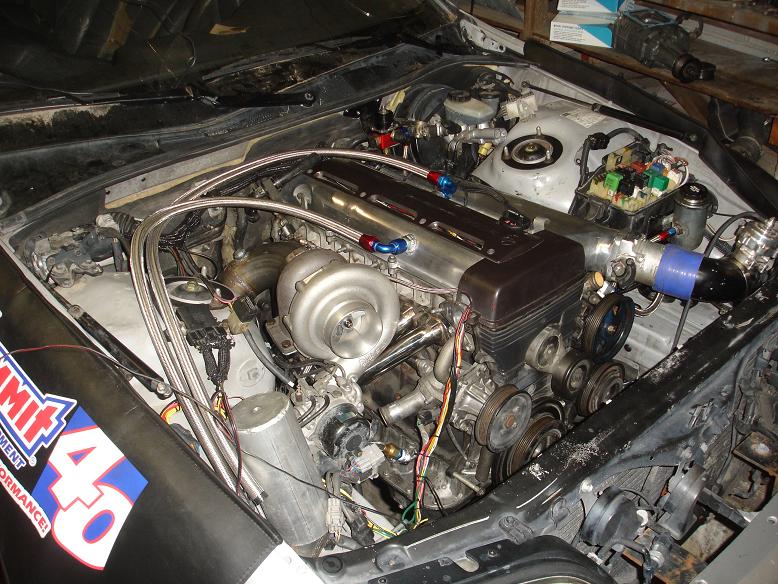

3.0L I6 2JZGE
stock rods with ARP bolts
JE 8.5 pistons
TT 1.3mm HG
ARP head studs
HKS 272 cams
seat blend and port cleanup
74mm ITS turbo
XSPower 3" intercooler
Tial 50mm BOV
Tial 38mm WG
Custom intake maniofold
Q45 Throttle body
Custom stainless 3 1/2" downipe

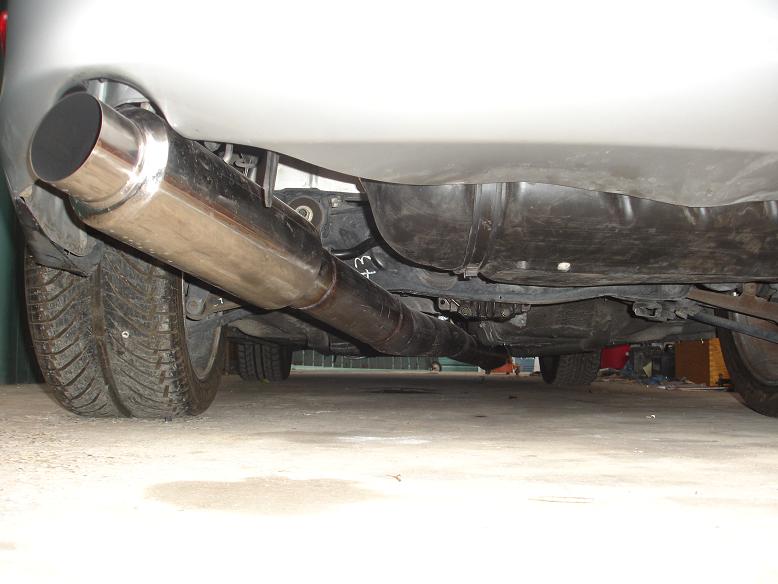

Custom stainless 4" from downpipe back
Weldon fuel pump
-10 gravity feed
-8AN from pump to dual -6 rail (too small)
Runs on E85(E70)
AEM boost controller
Custom Manual conversion
1988 turbo supra 5 speed transmission
stage 3 clutch(no where near strong enough)
stock driveline(with exception of front half for new tranny)
stock rear end with 4.10 gears
285/40/17 tires on Jupiter 3piece wheels
Full roll cage w/chute
Powerglide with 6,000 stall.

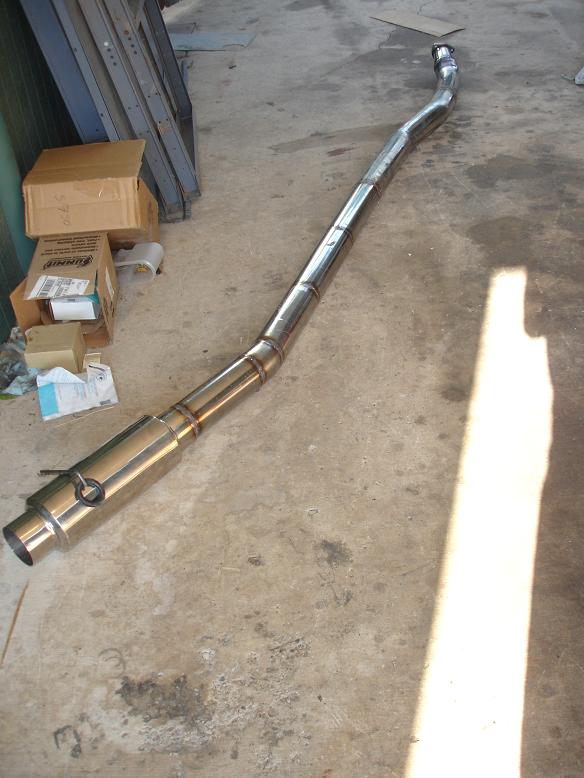

The downpipe is a 3 1/4" stainless pipe v-banded up the 4" exhaust.
The intake is a custom made intake using 4" aluminum piping, and 1/4" aluminum sheet metal.
Velocity stacks were manual spun out of 3" bar stock on a manual lathe, then flow tested
within 2cfm. The stock NA manifold was cut short, and the aluminum plate was cut out with a hold
saw to fit each runner, then welded. Each velocity stack was then welded to the top of each runner.
Using several specified pieces of 1/4" aluminum sheet, the manifold was assembled and welded together
to form a nice tapered design to the thottle body plate. A Q45 flange was used for the larger 90mm
Q45 throttle body.

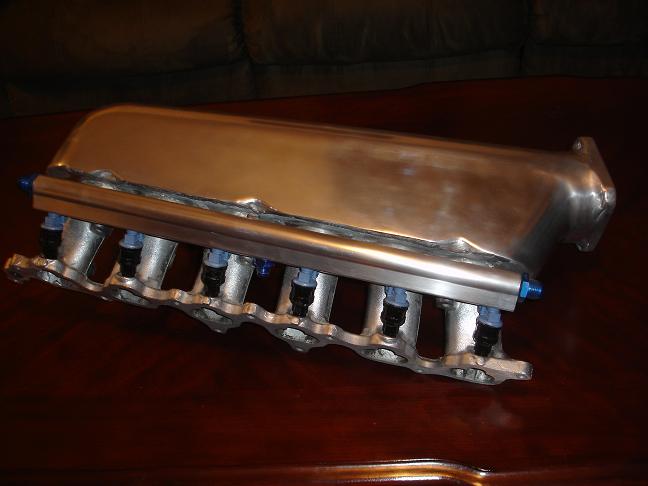

|Intake with fuel rail
